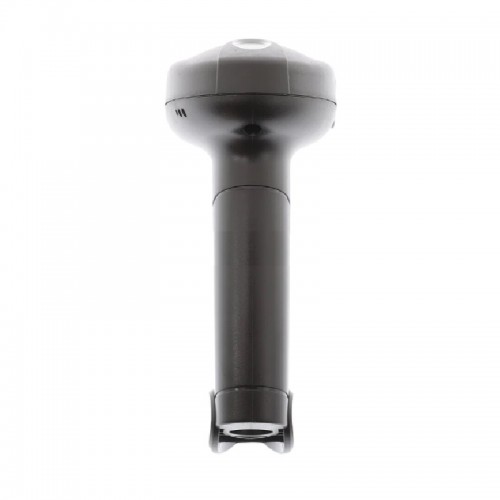

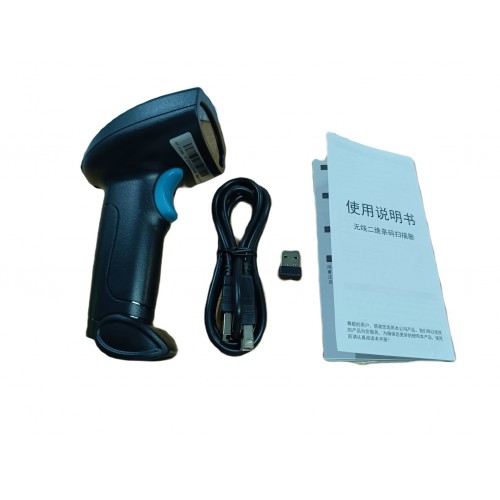

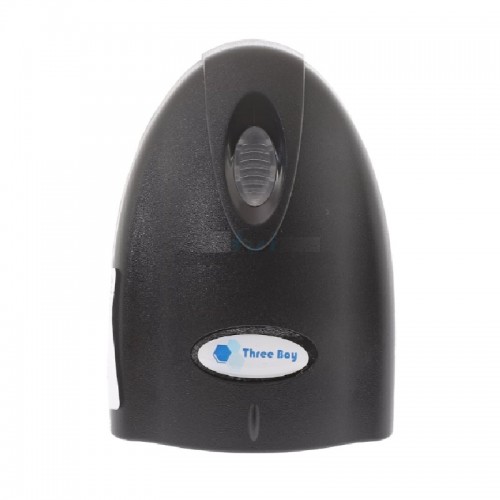

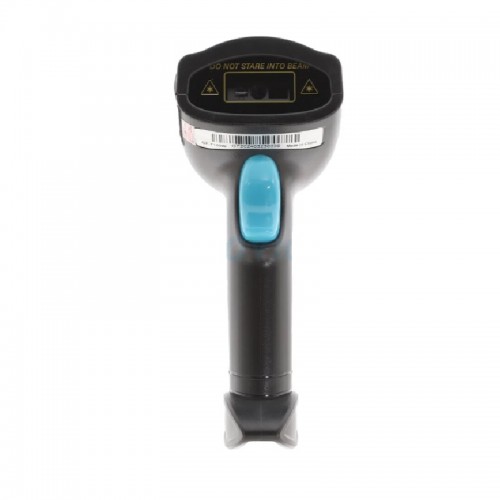

Barcode Scanner THREEBOY GF-7100W (Black)

Model Number

GF-7100

Performance Parameters

Light Sources

617nm LED Aimer,White LED

Supported Symbologies

1D:Codabar、Code 11、Code 39/Code 93、UPC/EAN、Code 128/EAN128、Interleaved 2 of 5、Matrix 2 of 5、MSI Code、Industrial 2 of 5、GS1 Databa

2D:QR code、Data Matrix、PDF417

Scan Type

Image CMOS

Scan Method

Manually/Successive/Automatic Scanning(Optional)

Scan Angle

Yaw 65°,Rotation 360°,Pitch 60°

Min Resolution

≥5mil

Depth of scan field

20cm.

Error Rate

Less than 5 million

Interface

USB-HID,USB-COM

Operating Frequency

Bluetooth 2.4GHZ

Storage Ability

512000Bytes

Pairing Model

One to one,

Receiving End

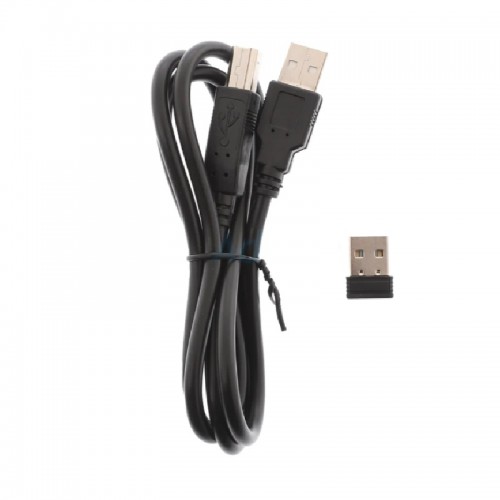

Dedicated Bluetooth USB receiver, Android、IOS Mobile devices

Physical Parameters

Dimensions

Total weight of box

290g.

Material

ABS+PC

Cable Length

1.02M

Environmental Parameters

Operating Temperature

-20℃~60℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95%（Non-condensing）

Drop/Shock Resistance：

Withstands multiple times 1.5meters drops to concrete

Electrical Parameters

Voltage

DC5V±5%

Current

135mA

Lithium battery

2200mA

Charging Time

5h

Standby Current

2mA

Battery Working Times

5.5h
