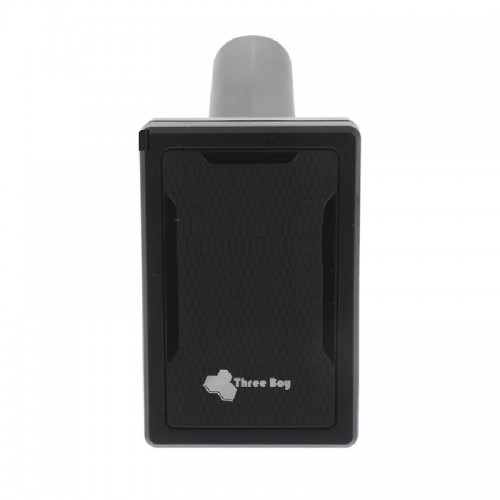

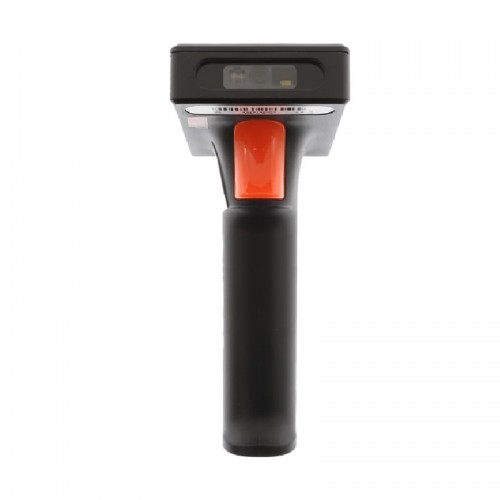

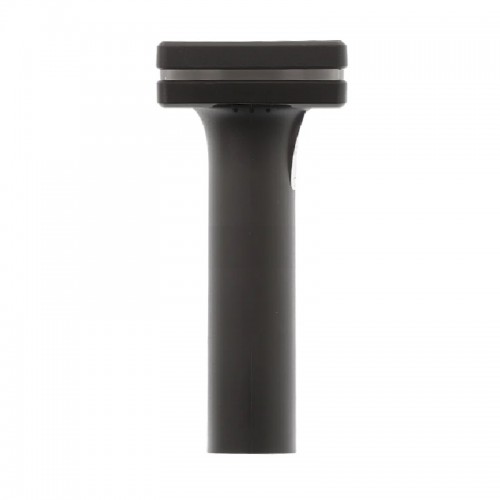

Barcode Scanner THREEBOY D60 (Black)

Performance Parameters

Light Sources

617nm LED Aimer, White LED

Supported Symbologies

1D: Codabar, Code 39, EAN-13, EAN-8, UPCA, UPCE0, UPCE1, Code 128,  Code 93, MSI-Plessey, Interleave 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, RSS-14, Qualified RSS, Extended RSS.

2D: QR Code, Data Matrix(ECC200), PDF417.

Scan Type

Image CMOS

Sensor

640*480

Scan Method

Manual/Continuous/Automatic Induction Scanning

Scan angle

Yaw 360°, Rotation ±60°, Pitch ±60°

Precision

1D: ≥5mil, 2D: ≥10mil

Depth of scan field

35-190MM(13MIL, EAN13, PCS90%)

Bit Error Rate

1/005million

Interface

USB-HID, RS232,USB-COM

Physical Parameters

Material

ABS+PC

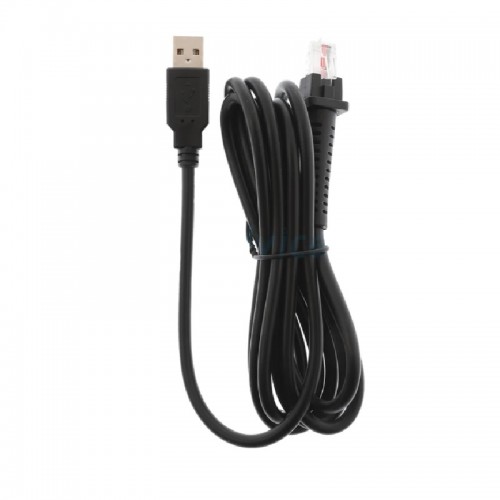

Cable Length

2M

Total weight of box

250g.

Environmental Parameters

Operating Temperature

-20℃~+60℃

Storage Temperature

-40℃~+70℃

Relative Humidity

5%~95% RH（Non-condensing）

Drop/Shock Resistance

Withstands multiple times 3meters drops to concrete

Electrical Parameters

Voltage

DC5V±5%

Current

120MA
